GREDDY Oil Cooler Kit Toyota Mark II JZX100 - 12014627

GREDDY Oil Cooler Kit Standard Type 13 Row For Toyota Mark II JZX100 1JZ-GTE – 12014627

Product Information

Former Part Numbers (If Applicable)

• 12014627
• GREDDY JZX100 Oil Cooler Kit
• TRUST Oil Cooler Kit Mark II JZX100

Key Features

• Genuine GREDDY standard type oil cooler kit
• NS1310G 13-row high efficiency oil cooler core
• Built-in thermostat sandwich block for stable oil temperature control

Vehicle Compatibility

• Toyota Mark II JZX100 1JZ-GTE
• Toyota Chaser JZX100 1JZ-GTE
• Toyota Cresta JZX100 1JZ-GTE
• Toyota Mark II Tourer V
• Toyota JZX100 1996-2000
• Toyota 1JZ-GTE Street & Track Applications

Important: Compatible with GReddy intercooler kit equipped vehicles only. Reinforcement and radiator upper air guide modification may be required during installation. Uses 3/4-16UNF center bolt sizing.

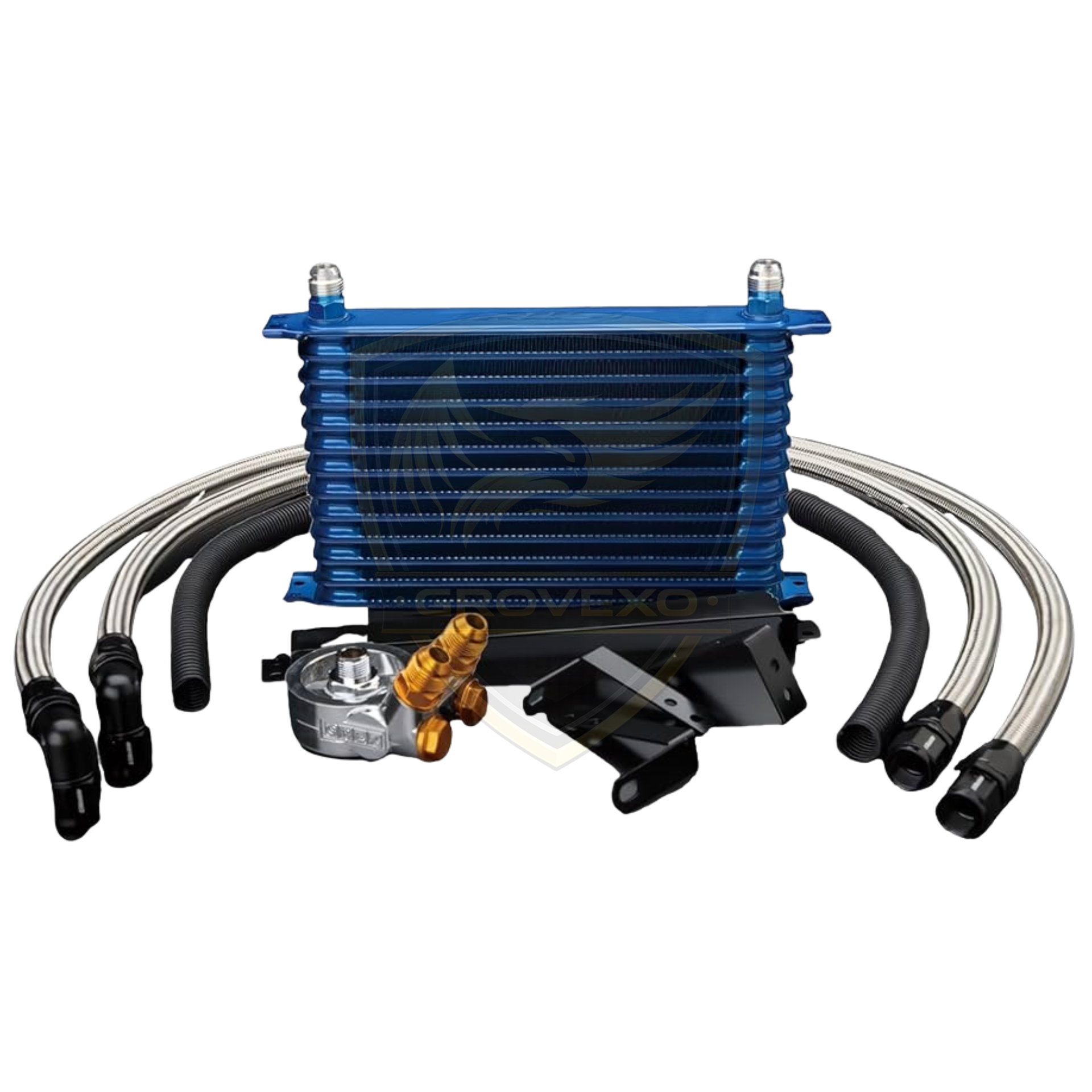

Package Contents

• 1x NS1310G 13 Row Oil Cooler Core
• Built-In Thermostat Block
• Oil Hoses & Fittings
• Mounting Brackets & Hardware
• Genuine GREDDY Packaging.
